Product Introduction

　　The INV3062 data acquisition and analysis system is a multifunctional, high-performance, and portable design collection system. The main control unit integrates 2 channels of 32-bit high-precision signal sources, 2-4 channels of 100MHz speed interfaces, built-in GPS/Beidou can provide timing and geographic coordinate functions, unique gigabit network series parallel cascade and synchronization function design, and the collection channel * high-precision 24 bit AD (single or dual core design) with a high 256kHz, Multiple modular input conditioning combinations with built-in large capacity batteries and different configurations for storage are suitable for diverse physical quantity collection sites.

　　The embedded DASPEMB-SRV service software in the system allows for easy access to various terminals directly through the local area network or internet. By using a LAN connection method, a computer can control multiple INV3062 for online or intelligent offline measurement. Using an internet connection method, each INV3062 is automatically connected to the cloud smart service center (or simply a server in the internet), and all internet terminal devices (including computers, tablets, smartphones, etc.) can access the INV3062 at any point through the cloud smart center

　　Manipulate and achieve remote measurement and monitoring based on cloud computing.

　　Multiple intelligent series INV3062 data acquisition and analysis systems can be conveniently cascaded and synchronized in series and parallel, including 1588 synchronization (close range, 100 meters) and GPS synchronization/Beidou synchronization (long-distance or even between different cities). The built-in wireless WIFI function can automatically form a network using the AP function of the wireless router or data acquisition device, making network cascading testing convenient and fast.

　　Features

　　1. Communication method

　　Built in gigabit 1588 switching function, supporting standard 1000M Ethernet interface;

　　Supports Wi Fi function (can be independently configured as AP or Station devices).

　　2. Data storage

　　Built in 16G EMMC storage, supporting expandable SD cards;

　　3. Testing and Handling

　　Multifunctional integrated design, suitable for testing different physical quantities;

　　Support cloud intelligent testing, which can monitor all measurement points in real-time online;

　　Single built-in web page for easy control and operation;

　　Support offline automatic working mode;

　　4. Synchronous collection and timing

　　Supports GPS/Beidou synchronization and can record GPS information in real-time

　　Supports IEEE1588 synchronization and 1588+GPS synchronization

　　5. Input output

　　Support 6-144 channel AD input, self-locking connector mode

　　Supports 2 signal source outputs

　　Support external trigger input sampling

　　Supports 10MHz external clock input

　　Support TEDS sensors

　　Support 2-4 100MHz sampling rate speed channels for torsional vibration analysis

　　6. Other

　　Built in large capacity battery, capable of working continuously for 5 hours (under normal usage) (not supported by SLOT12);

　　Support automatic detection of open circuit, short circuit, and connection status of IEPE sensors;

　　Equipped with strong anti aliasing performance, ensuring accurate measurement of low-frequency signals;

　　Supports setting any sampling frequency within the sampling range of 0.5Hz to 256kHz.

　　Main technical indicators

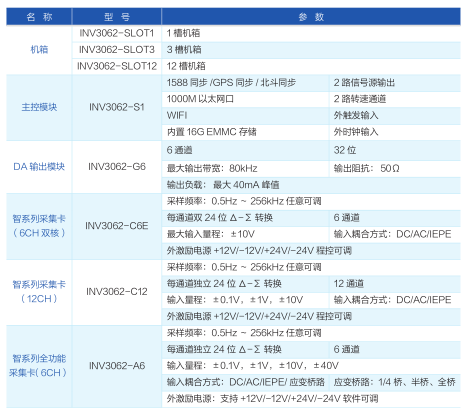

　　Product Selection
