Product Introduction

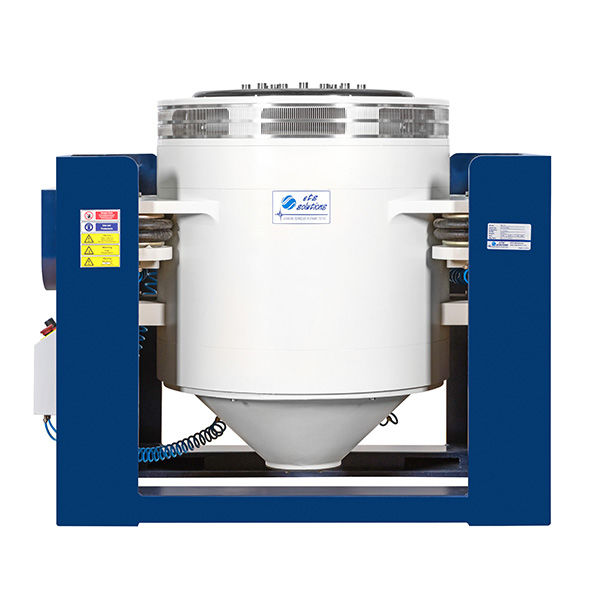

　　The direct coupled water-cooled electric vibration table is suitable for situations that require high thrust and large test pieces. This series of products is widely used in fields such as aerospace, weapons and ships, rail transit, automotive new energy, etc. Equipped with a climate box, it can also complete multiple environmental comprehensive tests. The excitation force range is from 70kN to 800kN, and the maximum load ranges from 600kg to 15000kg.

　　Features

　　1. The dynamic coil is guided by static pressure bearings, allowing for an offset torque of up to 10000N. m

　　2. The suspension guided by a combination of U-shaped springs and rollers has high torsional torque

　　3. Adopting a dual cycle water cooling system to ensure long-term operation of the electric vibration table

　　4. Random and sinusoidal excitation force 1:1 (0.8)

　　5. Double sine impact force (optional triple)

　　6. Displacement peak value 51mm, 76mm or 100mm

　　7. Lightweight dynamic coil and large worktable

　　8. The air spring at the ear shaft has good isolation effect

　　9. The air spring in the center room has strong load-bearing capacity and good low-frequency performance

　　10. Equipped with an automatic centering system, controlling the dynamic coil to always be in a balanced position during movement

　　11. Dual magnetic circuit design, low magnetic leakage, and uniform magnetic field

　　12. Electric steering device shall be configured during Vertical and horizontal switching
