Features

　　1. Unmatched ability to generate various signals for demanding measurements

　　2. A sine wave with 5 times lower harmonic distortion can generate a purer signal

　　3. Pulses up to 80 MHz with 1 ps jitter provide better timing

　　Instrument characteristics

　　1. 660 MSa/s sampling rate can provide any waveform with higher time resolution

　　2. 14 bit resolution and 1 mVpp to 10 Vpp amplitude provide higher amplitude accuracy

　　3. 4 MSA/channel standard configuration waveform memory and 64 MSA/channel optional configuration memory can store your * long waveforms

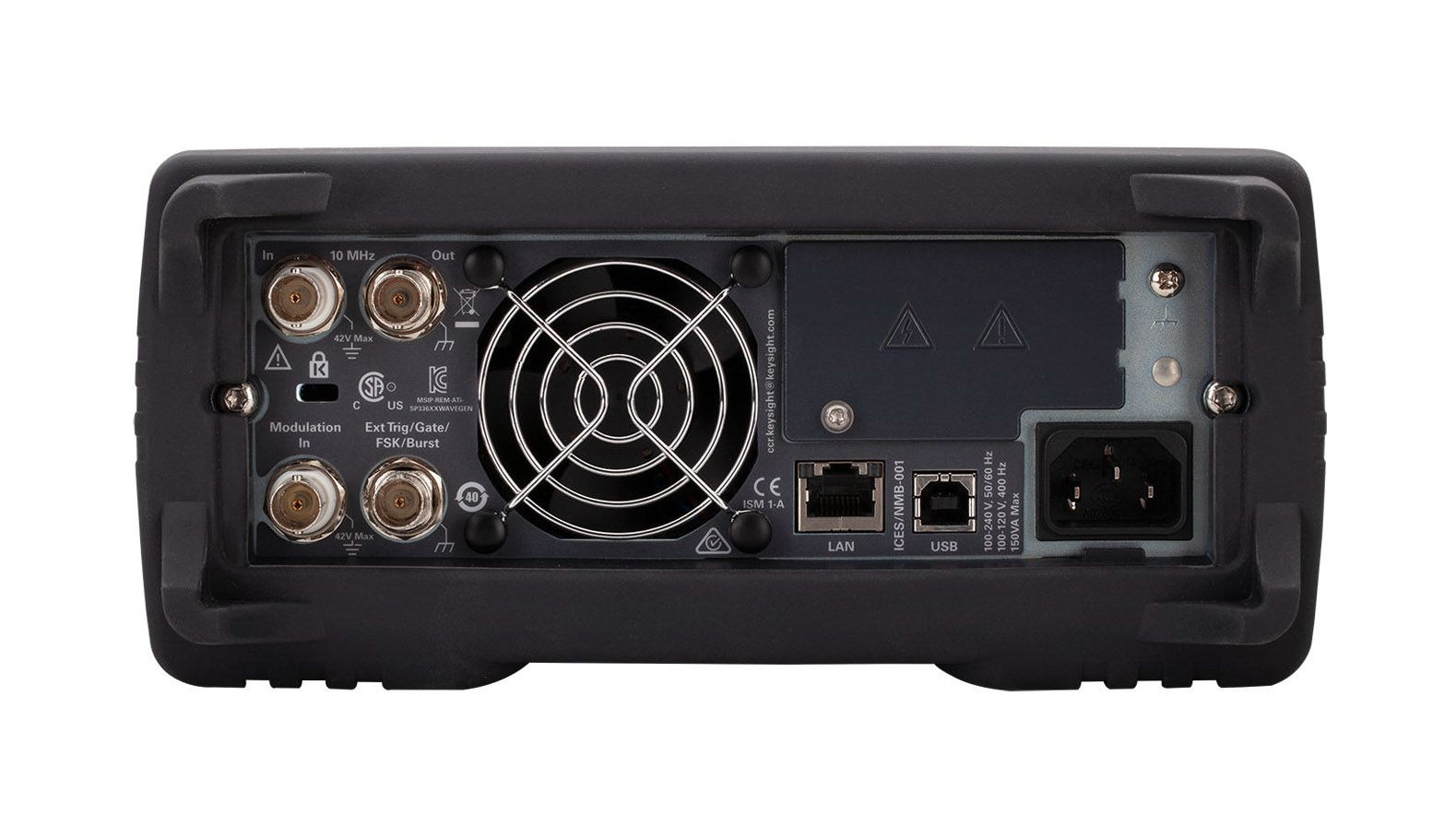

　　4. USB, LAN (LXI Core), GPIB optional interfaces enable the instrument to easily and quickly connect to a PC or network

　　Waveform Generation and Editing

　　1. Create waveforms from the front panel using the built-in editor

　　2. Capture waveform from oscilloscope and download it to generator

　　3. Create waveforms in MATLAB or Microsoft Excel and download them to the generator

　　4. Free download of BenchVue Basic basic application software for control instruments

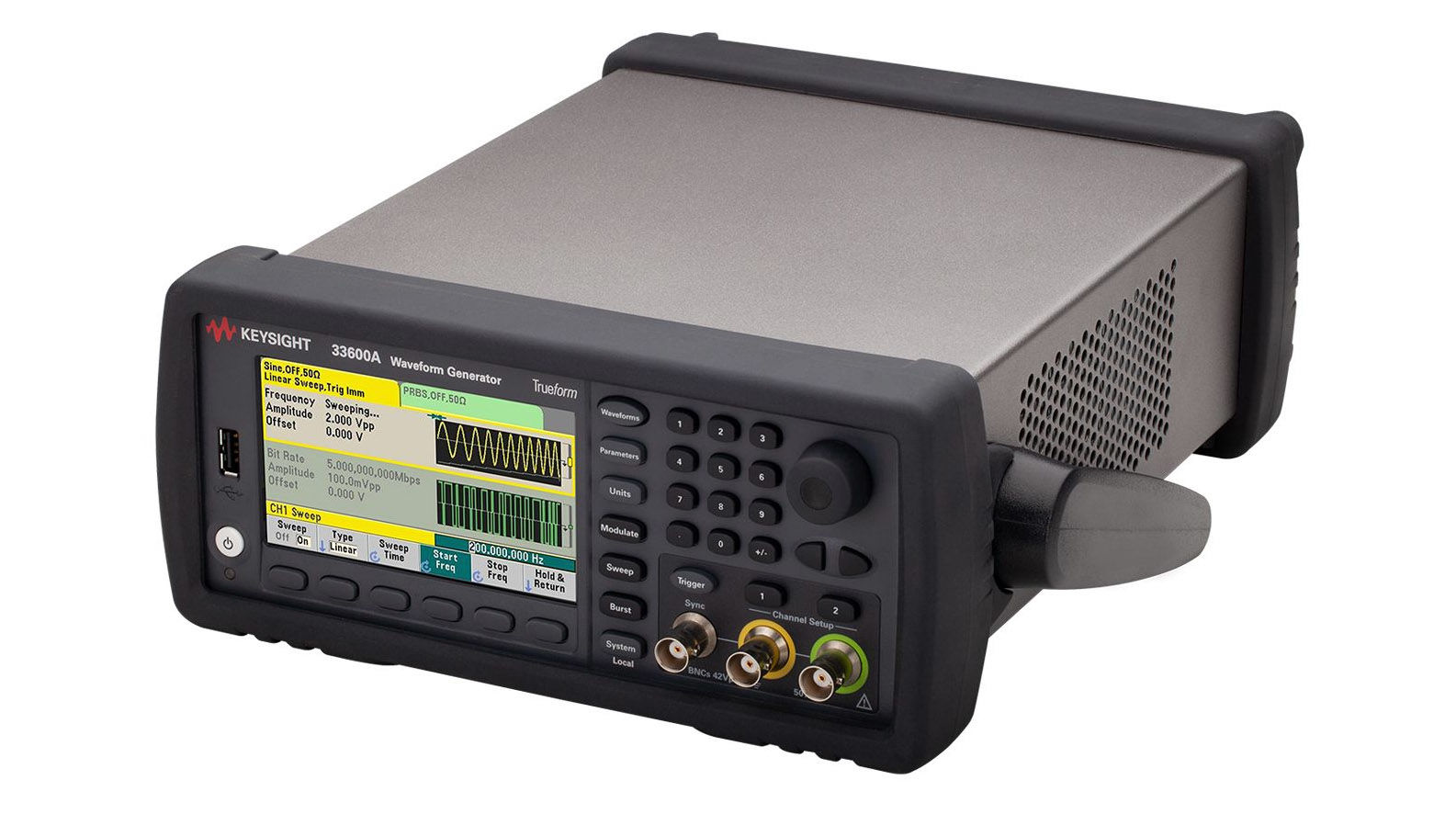

　　Keysight 33600A series waveform generators use unique Trueform signal generation technology. Compared with the previous generation of Direct digital synthesis (DDS) waveform generators, their performance, fidelity and flexibility are better. Easily generate the full range signal you need, ensuring that the signal generator can output the signal you expect. The 33622A can be easily upgraded as your needs change.
