Product Introduction

　　INV3068 is a micro rugged acquisition instrument with a 16 channel volume of only 80mm × 80mm × 98mm. Suitable for wind tunnel testing, aircraft, vehicle testing, and other testing scenarios with high requirements for the size and weight of the acquisition instrument, as well as testing scenarios with strong overloads and large impacts.

　　INV3068 adopts a stacked structure and modular design. The number of single acquisition modules can be 1-8, and each acquisition module can have 2-4 channels. The collection module includes stress and strain testing module, multifunctional module, and fully functional testing module.

　　INV3068 adopts two communication methods: wireless and wired. The wireless part adopts the new generation wireless data transmission protocol and utilizes MESH technology to automatically form a network, greatly improving communication distance and data transmission stability, making testing more convenient and fast. Each collection device also has built-in Bluetooth function, which can communicate with devices such as mobile phones and tablets, and input test information. Using wireless routing gateway or Bluetooth, you can control multiple device nodes at the same time for online or offline Test effort. Built in 100M 1588 routing function, achieving serial synchronization and power supply.

　　The collection instrument is equipped with an 8GB EMMC memory card (high reliability, wide temperature range), which can support up to 256GB for maximum expansion. A 24-bit high-precision ADC conversion chip with a maximum sampling frequency of 256kHz. Supports IEEE1588 synchronization, GPS/Beidou timing synchronization, and multiple hybrid synchronization methods.

　　Features

　　1. Distributed, supporting multiple serial cascades

　　2. Wireless communication, MESH networking, long transmission distance

　　3. Supports Bluetooth function and writes measurement point information

　　4. GPS/Beidou timing synchronization

　　5. Built in memory card, supporting offline collection

　　6. Support screen control, press preset parameters to start and stop with one click

　　7. High performance, multi core collaborative work

　　8. Network serial power supply

　　9. OLED real-time display of instrument status

　　10. IEEE1588 synchronization

　　11. Multiple types of signal inputs for the acquisition unit

　　Main technical indicators

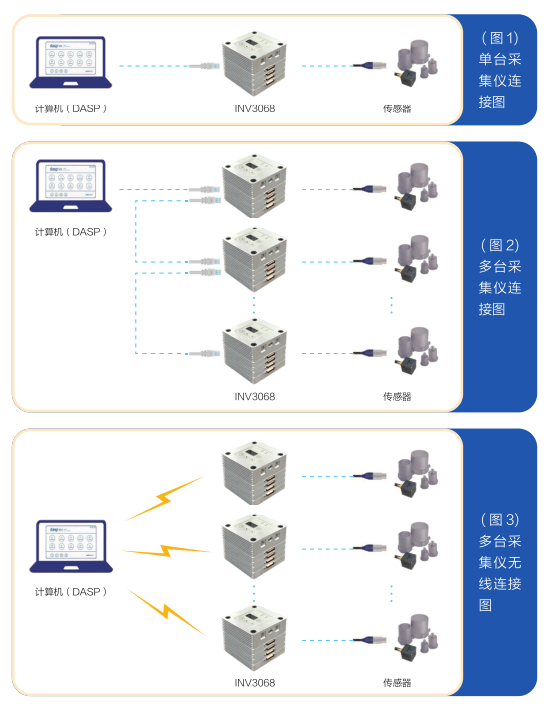

　　Typical cascading method
