Features

　　The N2783B current probe provides an accurate and reliable solution for measuring AC/DC currents. This probe adopts hybrid technology including Hall effect sensor and AC current transformer, which can accurately measure the continuous DC or AC current of * 30 Arms. This current probe also has characteristics such as flat frequency response, low noise, and low insertion loss, making it very suitable for measuring steady-state or transient currents of devices such as motors, switching power supplies, inverters, controllers, disk drives, LCD displays, electronic ballasts, and current amplifiers driving inductive loads.

　　1. It can be used together with Keysight oscilloscope with high impedance BNC input: 1000, 2000 X, 3000 X, 4000 X, 5000, 6000, 7000, 8000 and 9000 series (90000A series requires E2697A, 90000 X series requires N5449A)

　　2. Achieve a flat bandwidth from DC to 100 MHz, with a high current of 30 Arms

　　3. Excellent accuracy (1%) and high signal-to-noise ratio

　　4. Overload protection function can prevent probe damage

　　5. Directly connect the high impedance BNC input terminal of the oscilloscope

　　6. Use the 'demagnetization' button to remove residual magnetism accumulated in the magnetic core

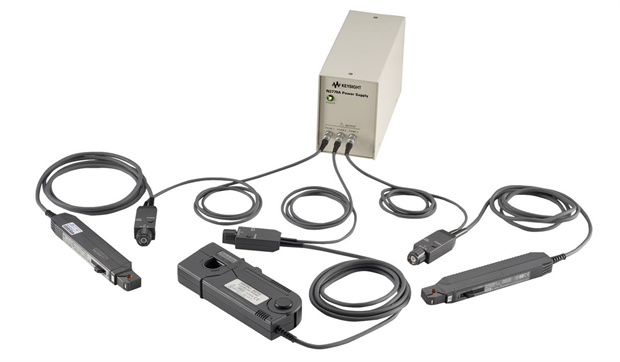

　　7. External power supply N2779A can be connected to one power supply * with three more N278xBs
