【Midricks ® display】

1、Equipped with a comprehensive application program, suitable for industrial scales with simple weighing tasks.

2、Modular design, 2 display and indication units, 13 platform sizes.

3、 Range 3kg to 5t, readability 0.2 to 200g.

4、 The spray painted version has an IP65 protection level and is suitable for industrial use;

5、 The stainless steel version has an IP67 | IP68 protection level and is suitable for various software applications, including counting, weight checking, and pre packaged weight checking. It can be pre installed as a standard application.

6、 Two versions are available for metrological certification, class III accuracy, resolution 3000 e and 2 x 3000 e or standard resolution (15000d)

7、20mm LCD display with backlight and automatic power-saving shutdown function;

8、Optional weight units: Kg, g, Lb, oz, t, pcs;

9、 Convenient custom calibration weight and multi-point linear calibration;

10、 Optional AC or rechargeable battery power supply;

11、 Optional interfaces: RS232, RS485/422, analog 0/4-20mA, 0-10V, 16 bit, digital I/O (5 inputs and 5 outputs), EthernetTCP/IP, and ModbusTCP;

12、 Platform scale with frame: The scale platform is composed of a scale body and a frame; Double cylindrical head swing automatic reset to prevent displacement of the scale body; Optional slope guide and weighing truck; Optional installation method framework for floor mounted weighing equipment;

13、 Frameless platform scale: Without a frame, the scale platform is directly supported on the ground by the power transmission components of the weighing sensor; The sensor transmission mechanism can adjust the height of the four corners to maintain the level of the weighing platform; Easy to maintain, clean, and move;

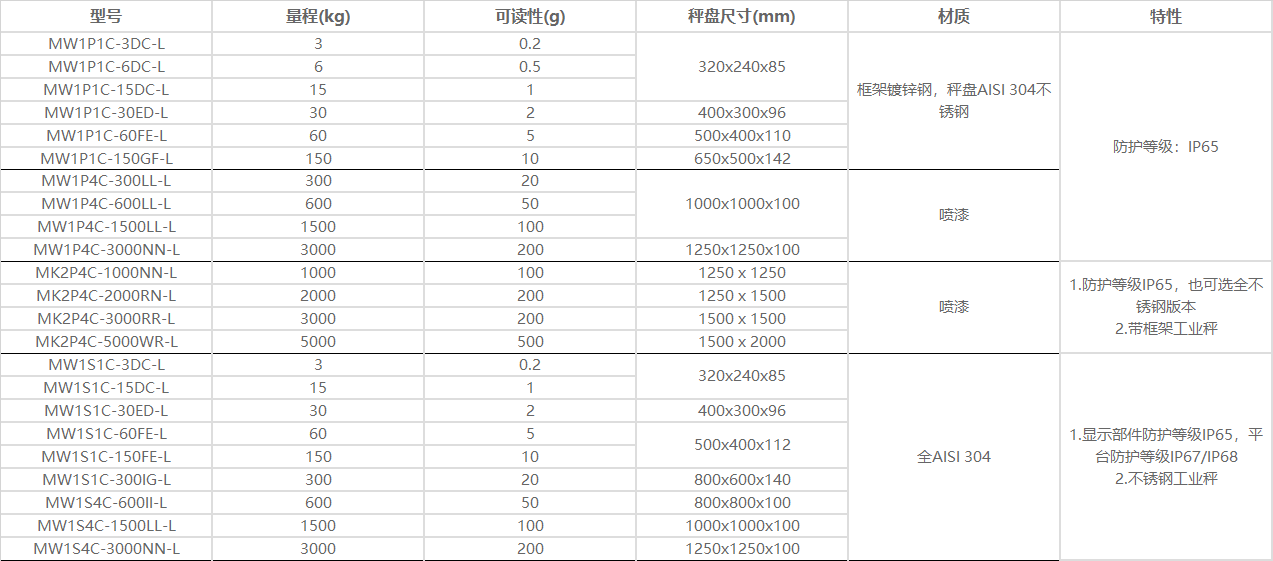

　　【Specifications Parameters】
