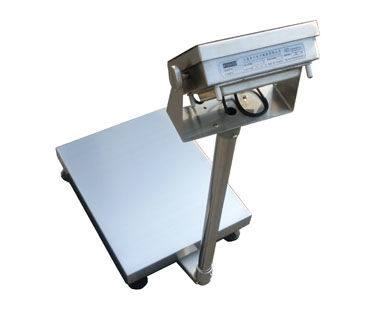

The explosion-proof electronic platform adopts intrinsically safe circuits and explosion-proof technology. The display controller and weighing system become a separate structure. It has the characteristics of small size, light weight, convenient mobile maintenance, safety and reliability, and low price. The product has been certified as qualified by the explosion-proof safety supervision and inspection station of instruments and meters. When oxygen (air), explosive substances, and explosive sources (such as electric sparks or hot surfaces) are present in the environment simultaneously, it can cause an explosion. The explosion-proof weighing instrument must have at least one factor in the controller, which can achieve the purpose of explosion-proof. This is the principle of exploding triangles.

　　The explosion-proof electronic scale adopts a new generation of components and multifunctional dedicated integrated circuits. Through careful software design, the electronic scale has the characteristics of high accuracy, good reliability, and high cost-effectiveness. The explosion-proof system adopts an integrated technology that combines intrinsically safe circuits and explosion-proof instrument displays. It can be widely used in the petroleum, chemical, mining, pharmaceutical, aerospace, and military explosives sectors.

　　This product can be used in Zone 1 (or Zone 2) hazardous areas with explosive gas mixtures of Class IIB and temperature group T4.

　　Product Composition

　　1、 Standard configuration:

　　1. A high-precision shear beam explosion-proof weighing sensor

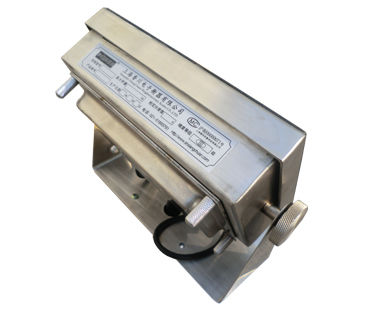

　　2. Xiangchuan XK3101 series intelligent AC/DC dual purpose weighing explosion-proof display instrument

　　3. High capacity explosion-proof battery (explosion-proof grade EXIAICT6)

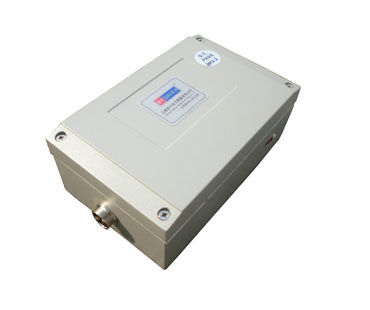

　　4. All stainless steel explosion-proof hot wire box (explosion-proof grade EXIAICT6)

　　2、 Optional:

　　1. Single and double approach slopes

　　2. Explosion proof printer

　　3. Explosion proof large screen display

　　4. Overload explosion-proof alarm system

　　5. 4-20mA current output

　　Features

　　1. Weighing instrument: LED digital display, clear and easy to read; Built in rechargeable battery for both AC and DC purposes; Stainless steel shell with excellent anti-interference ability

　　2. Sensor: high-precision weighing sensor, stable; Double parallel beam structure, strong resistance to lateral forces; Protection level IP67

　　3. Main functions: net weight, zero setting, peeling, accumulation, etc.

　　4. Power supply voltage: AC 220V+10%, 50Hz DC 6V4Ah.

　　5. Instrument power consumption:<5W

　　6. Protection measures: Intelligent identification of battery level, automatic shutdown.

　　7. Communication interface: Rs 232c can be connected to a micro printer

　　8. All steel weighing platform or adding adjustment feet at the four corners of the PD type outer frame, with built-in junction box, beautiful and elegant

　　9. Adopting specialized steel assembly welding, the scale body has high strength and sufficient precision

　　10. Flat or patterned steel plate countertop

　　11. The surface is treated with sandblasting and baking paint, with strong corrosion resistance

　　12. It can be made of all stainless steel material with wire drawing treatment.

　　Model Selection

　　1. TCS-XC-30EX

　　Weigh up to 30Kg, with a minimum graduation of 0.001Kg, with a countertop size of 300 * 400, equipped with wall mounting brackets, and explosion-proof in Zone 2

　　2. TCS-XC-75EX

　　Weigh up to 750Kg, with a minimum graduation of 0.005Kg. The table size is 400 * 500, equipped with wall mounting brackets, and explosion-proof in Zone 2

　　3. TCS-XC-100EX

　　Weigh up to 100Kg, with a minimum graduation of 0.01Kg, with a countertop size of 400 * 500, equipped with wall mounting brackets, explosion-proof in Zone 2

　　4. TCS-XC-150EX

　　Weigh up to 150Kg, with a minimum graduation of 0.01Kg. The table size is 400 * 500, equipped with wall mounting brackets, and explosion-proof in Zone 2

　　5. TCS-XC-200EX

　　Weighing up to 200Kg, dividing down to 0.02Kg, with a countertop size of 450 * 600, equipped with wall mounting brackets, explosion-proof in Zone 2

　　6. TCS-XC-300EX

　　Weighing up to 300Kg, dividing down to 0.02Kg, with a table size of 450 * 600, equipped with wall mounting brackets, explosion-proof in Zone 2

　　7. TCS-XC-600EX

　　Weigh up to 600Kg, with a minimum graduation of 0.05Kg. The table size is 600 * 800, equipped with wall mounting brackets, and explosion-proof in Zone 2

　　8. TCS-XC-800E

　　Weigh up to 800Kg, with a minimum graduation of 0.05Kg. The table size is 600 * 800, equipped with wall mounting brackets, and explosion-proof in Zone 2

　　9. TCS-XC -1000EX 1000kg 0.05kg 800X1000

　　Weigh up to 1000Kg, with a minimum graduation of 0.05Kg, with a countertop size of 800 * 1000, equipped with wall mounting brackets, and explosion-proof in Zone 2
