Introduction：Pico 6000 series oscilloscopes are the highest performance PC oscilloscopes available, featuring high bandwidth, high sampling rate, deep buffering, advanced triggering, deep storage, fast data transfer, and USB3.0 external laptop connectivi……
1. High bandwidth and sampling rate
The 6000 series oscilloscope has an analog bandwidth of 250MHz to 500MHz, and with a real-time sampling rate of 5GS/s, it can display a single pulse with a time resolution of 200ps. The Equivalent Sampling (ETS) mode improves the maximum sampling rate by 50GS/s, providing higher timing resolution for repetitive signals.
2. Deep caching
The PicoScope 6000 series computer oscilloscope comes standard with the smallest cache, much larger than any other brand of oscilloscope at any price point. Although the minimum resolution of other oscilloscopes is relatively high, they cannot be maintained for a long time without deep caching.
3. Trigger mode
In addition to the standard trigger mode that most oscilloscopes have, the PicoScope 6000 series oscilloscopes also have a complete set of built-in trigger modes to help you capture the data you need. Digital triggering can achieve full bandwidth and full vertical resolution for each input channel.
4. Fast data transmission
The new overspeed USB 3.0 interface sends data to your computer faster than before, providing higher data throughput for the data processing function of PicoScope software.
5. High end performance
PicoScope 6404C and 6404D are USB real-time oscilloscopes with the highest bandwidth and fastest sampling rate in the market, but their prices are quite high. Their high sampling speed means that they can display a single pulse with an ultra short time resolution of 200ps. In digital afterglow fast mode, the waveform capture rate exceeds 100000 seconds, which helps to capture intermittent and erratic burrs.
6. Deep memory
The cache depth of PicoScope 6404D is deeper than any oscilloscope in the world. Deep caching enables the oscilloscope to collect data for longer periods of time at higher sampling speeds without gaps. For example, even at a small sampling rate of 5GS/s, PicoScope6404D can continuously capture 200ms of data. The zoom, drag, and cache preview tools of PicoScope software make it easier to discover the details you need.

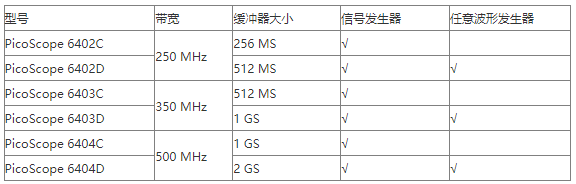

1、 Number of channels: 4+AUX inputs
2、 Output: FG or FG+AWG
3、 Analog broadband: 250 MHz to 1 GHz
4、 Sampling rate: 5 GS/s
5、 Resolution (enhanced): 8 bits (12 bits)
6、 Cache: 256 MS to 2GS
7、 Power supply: AC adapter
