Product Introduction

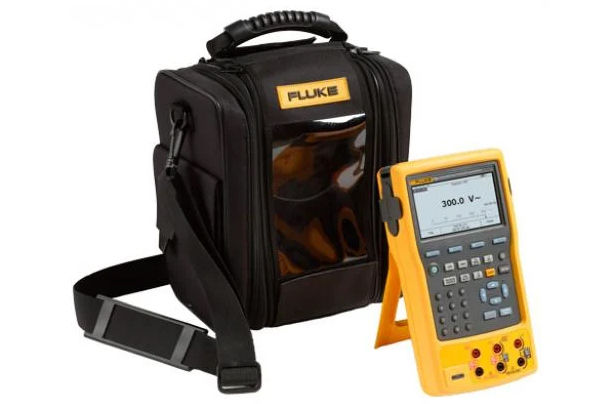

　　Whether you are performing calibration, troubleshooting, or routine maintenance, the Fluke750 series documented full function process calibrator can help you complete tasks faster. This calibrator can perform multiple different tasks, is fast and efficient, and is the process calibrator you need to carry.

　　1、 Multiple functions:

　　Calibrate temperature, pressure, voltage, current, resistance, and frequency. Due to its ability to measure and output, this powerful tool allows you to conduct comprehensive troubleshooting and calibration.

　　2、 Powerful and easy to use:

　　A user-friendly, menu driven display screen provides full guidance when you perform any task. Through programmable calibration programs, you can create and run automated pre/post calibration programs to ensure fast and consistent calibration.

　　3、 Record and archive the results:

　　In order to meet the requirements of ISO-9000 or legal standards, Fluke 753 and 754 can capture your calibration results without the need for paper and pen on site. Fluke 753 and 754 have a USB interface that allows you to transfer results to your computer without having to wait for manual transcription back in the workshop, thus saving a lot of time.

　　4、 Support mainstream instrument management software:

　　753 and 754 can be used in conjunction with Fluke DPC/TRACK software, as well as common programs from Honeywell Meridium, EmersonCornerstone, Yokogawa, Prime me Technologies, Intergraph, and other companies. You can create a list of programs, instructions, and actions to provide fast and simple recording.

　　5、 Real handheld instruments:

　　It is very compact and can be easily loaded into the tool kit, and can also be used in limited spaces. Using a rechargeable lithium-ion battery pack, it can be used continuously for one shift.

　　6、 Durable and reliable performance:

　　The encapsulated polyurethane shell can withstand rough handling in industrial environments. The calibrator provides a calibration cycle of 12 or 24 months and a 36 month warranty.

　　7、 The bright white display screen allows you to read the results in any type of light. There are three (3) settings for the backlight.

　　8、 Soft keys can provide one click access to enhanced functions, including task lists, automation programs, scaling, maximum/minimum values, including task lists, automation programs, scaling, maximum/minimum values, steps and ramps, and viewing memory.

　　9、 Three operating modes of measurement, output, or simultaneous measurement/output allow technicians to troubleshoot, calibrate, or maintain the instrument using only one tool.

　　10、 The integrated HART communication function allows you to program and control the HART instrument (* 754).

　　11、 Immediate use:

　　If you have used the Fluke 74X process calibrator, you can quickly become familiar with the 75x and start using it immediately without the Learning curve effect.

　　12、 The multilingual interface displays instructions in English, French, German, Spanish, and Italian.

　　13、 Automatic skip allows technicians to set the calibrator to delay its start, and can also set specific step sequences to run as a continuously changing test source without anyone watching.

　　14、 The value entered by the user allows the user to capture readings measured or output by other devices.

　　15、 Custom units can scale and display readings in any user-defined unit.

　　16、 The switching calibration program performs fast and automated calibration for one and two point switching of voltage, current, temperature, and pressure.

　　17、 The differential pressure flow instrument calibration program uses the square root function to directly calibrate DP flow instruments.

　　18、 A built-in algebraic calculator with four major functions, as well as square root function, to store, recall, and execute calculations required for setting up instruments or evaluating on-site data. It can be used to set the output function of the calculated value. No need to carry a pen or paper, no need to carry an additional calculator.

　　19、 The programmable measurement delay internal automation program allows for calibration of instruments with slow response.

　　Model Selection

　　The Fluke 750 calibrator comes in two models, and you can choose the appropriate combination of functions according to your needs.

　　Fluke 753 provides simultaneous output and measurement functions for all general process parameters. Create and execute automated programs and automatically capture results. The USB interface allows for bidirectional communication with common instrument management applications based on PC.

　　Fluke 754 provides all the functions of 753 and can also maintain and calibrate selected HART transmitters without the need for additional tools.
