Introduction：【Mechanical parameters】Shaft: Φ10, Φ12, Φ14Protection grade: IP66Rotating speed per minute: 3000RPMCloser shaft load: 40N axial, 80N radialShock: 100g, 6msVibration: 10g, 10.... .2000HZBearing life: 9 times 10 revolutionsMoment of inert……

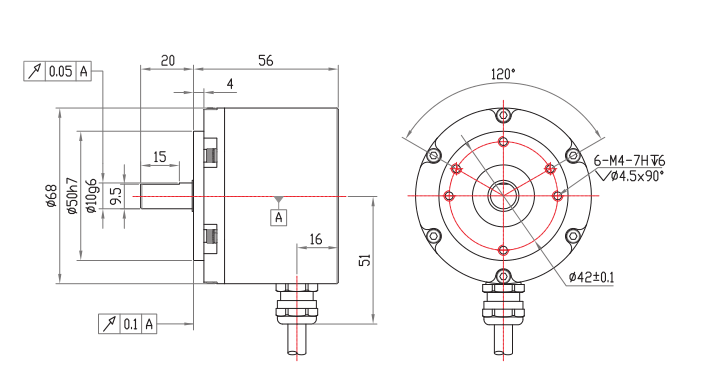

Shaft: Φ10, Φ12, Φ14
Protection grade: IP66
Rotating speed per minute: 3000RPM
Closer shaft load: 40N axial, 80N radial
Shock: 100g, 6ms
Vibration: 10g, 10.... .2000HZ
Bearing life: 9 times 10 revolutions
Moment of inertia: ≈1.8×10 kgm².
Starting torque: <0.015 Nm
Spindle material: stainless steel
Main body material: aluminium alloy anodized
Housing material: aluminium alloy anodized
Operating temperature: -40°C...+80°C
Storage temperature: -40 ℃...+80 ℃
Weight: ≈300g (2m cable)
