MPS rope displacement sensor, with a range of 100mm~50000mm, can be selected in various sizes according to the range and installation size, including XS (micro), S (small), M (medium), L (large), and XL (ultra large); According to the type of signal output, there are: resistance output, voltage output (0-5V; 0-10V), current output (4-20mA, two wire or three wire), pulse output (AB phase or ABZ phase incremental square wave), RS485 digital signal or absolute encoding output options. Sensors have small dimensions, high accuracy, and are easy to install and use, making them widely used in the automation industry.

　　[Scope of Work]

　　S-type (small, 100-2500mm)

　　M-type (medium size, 500-7500mm)

　　L-shaped (large, 7000-15000mm)

　　XL type (ultra large, 15000-3000mm)

　　Features

　　1. Long service life, up to 5 million runs,

　　2. High accuracy, linear accuracy 0.15%, repeatability accuracy 0.02%

　　3. Various models with multiple signal outputs available for convenient system acquisition or long-distance transmission

　　4. High protection level, can be customized waterproof for outdoor use

　　Signal output

　　1. Resistance output (5K or 10K), voltage output (0-5V/0-10V, three wire or four wire);

　　2. Current output (4-20mA, two wire, three wire, or four wire);

　　3. Pulse output (AB phase or ABZ phase pulse square wave, differential signal output);

　　4. RS485 digital signal output or absolute value encoding output.

　　Product Features

　　1. This product is widely used in the automation industry due to its small size, good stability, and convenient installation and use. Long service life, running up to 5 million times; High accuracy, linear accuracy ± 0.5%, repeatability accuracy ± 0.02%, pulse output resolution up to 0.018mm; There are various models and multiple signal outputs to choose from, making it convenient for system acquisition or long-distance transmission;

　　2. The shell is made of anodized aluminum oxide material, which emits static electricity interference and has a high level of protection. It can be customized with a waterproof type for outdoor use.

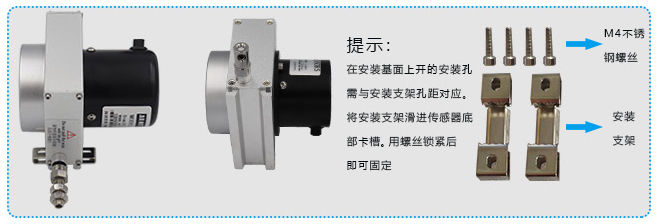

　　3. Install using a buckle type fixing bracket, and some models are fixed with screws. Measuring elements: Potentiometer, encoder.

　　4. The shipment includes an accessory kit (2 fixing brackets and 4 fixing screws).

【Specification parameters】

　　[Installation and Usage Instructions]

　　1. When selecting the range of the rope displacement sensor, there should be margin left. It is strictly prohibited to use it beyond the range. Generally, a larger range can be selected based on the actual stroke.

　　2. Utilize sensor mounting brackets or fixed screw holes to directly install or add additional protective devices according to the needs of on-site and machine installation space facilities.

　　3. When installing and using the pull rope sensor, it is necessary to pay attention to keeping the pull rope parallel to the rope outlet (with a maximum allowable deviation of ± 3 °) to ensure the measurement accuracy and service life of the sensor.

　　4. The MPS series rope displacement sensor rope is made of stainless steel and coated with anti-corrosion plastic layer. Please pay attention to protection to prevent external wear, scratches, dust or debris from invading the sensor, which may cause the sensor to operate smoothly.

　　5. Before the cable displacement sensor is installed and fixed, please do not pull out the cable and snap it back instantly. This will cause the cable to break, or even damage the Potentiometer (or encoder) in serious cases.

　　6. The instantaneous speed of reciprocating motion of XS type, S type, and M type rope displacement sensors should be less than 1m/s; L-type and XL type should be less than 0.5m/s.

　　7. The movement direction of the rope displacement sensor should be kept horizontal with the direction of the rope outlet. If the movement direction changes, a pulley device should be installed.

　　8. The protection level of the MPS series rope displacement sensor is relatively low, and our waterproof rope displacement sensor should be preferred for outdoor use.
