Features
1. The output voltage range is from 0~40V to 0~600V, with a single machine power of 1~3KW. It can be customized and programmed, and adopts a standard 1U/2U chassis for easy installation and use.
2. Constant power, with a wider range of output voltage and current;
3. High precision and resolution up to 1mV/1mV;
4. Low ripple noise * only 30mVp-p;

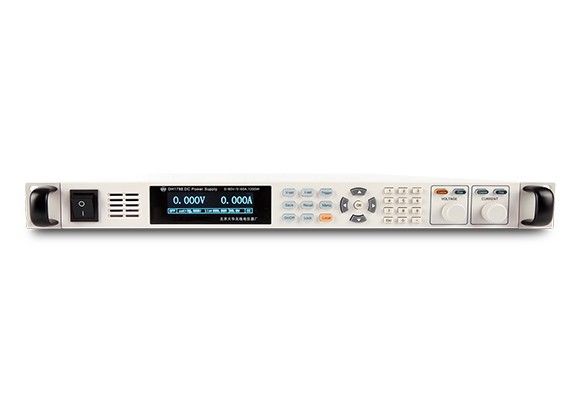

5. High brightness OLED display screen with a wide viewing range and high display resolution;
6. Automatic switching of CV/CC mode without manual setting;
7. Built in hardware overvoltage protection circuit, with protection functions such as overvoltage, overcurrent, and overheating.

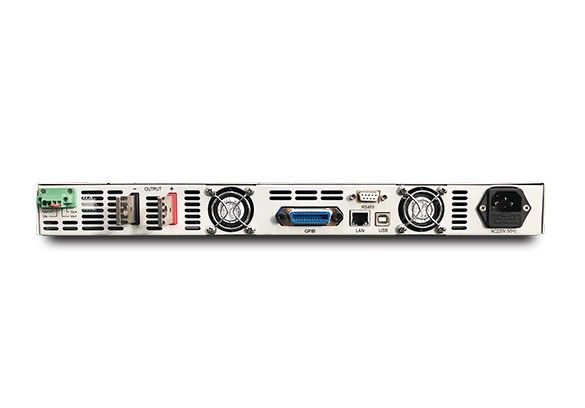

8. Standard LAN, USB, RS485 or RS232 interfaces, optional GPIB interface;
9. Supports remote voltage compensation and can provide high-precision output when used remotely;
10. High power density, 1U/2U standard rack size;
11. The entire series of DH1798 products can be customized as bipolar power supplies, suitable for aging testing of motors, car wipers, window regulators, and other devices.

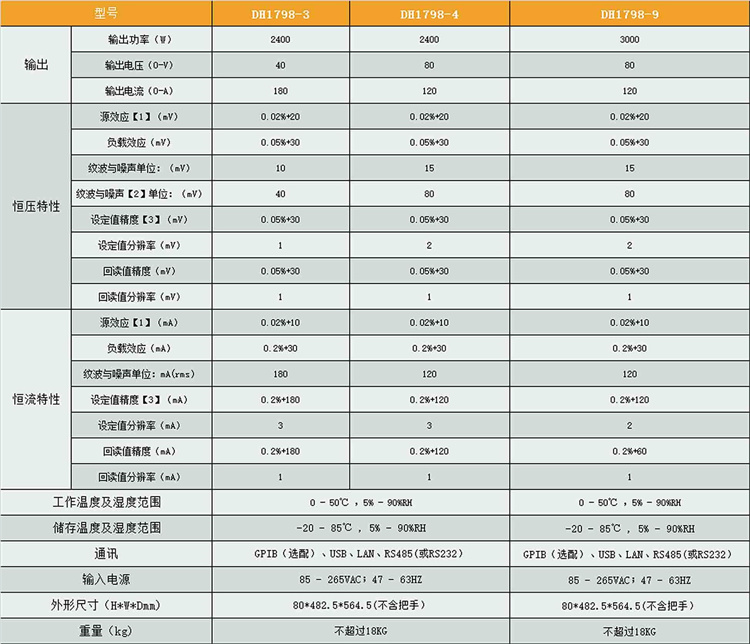

Specification parameters
