It adopts intrinsically safe circuits and explosion-proof technology. The display controller and weighing system become a separate structure. It has the characteristics of small size, light weight, convenient mobile maintenance, safety and reliability, and low price. The product has been certified as qualified by the explosion-proof safety supervision and inspection station of instruments and meters.

　　When oxygen (air), explosive substances, and explosive sources (such as electric sparks or hot surfaces) are present in the environment simultaneously, it can cause an explosion. The explosion-proof weighing instrument must have at least one factor in the controller, which can achieve the purpose of explosion-proof. This is the principle of exploding triangles. By adopting a new generation of components and multifunctional specialized integrated circuits, and through careful software design, the electronic weighing instrument has high accuracy, good reliability, and high cost-effectiveness. The explosion-proof system adopts an integrated technology that combines intrinsically safe circuits and explosion-proof instrument displays. It can be widely used in the petroleum, chemical, mining, pharmaceutical, aerospace, and military explosives sectors. This product can be used in Zone 1 (or Zone 2) hazardous areas with explosive gas mixtures of Class IIB and temperature group T4.

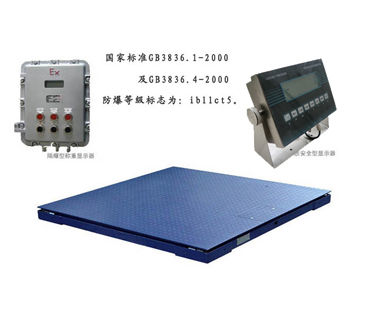

　　Product Composition

　　1、 Standard configuration:

　　1. Four high-precision shear beam explosion-proof weighing sensors

　　2. Xiangchuan XK3101 series intelligent AC/DC dual purpose weighing explosion-proof display instrument

　　3. High capacity explosion-proof battery (explosion-proof grade EXIAICT6)

　　4. All stainless steel explosion-proof hot wire box (explosion-proof grade EXIAICT6)

　　2、 Optional:

　　1. Single and double approach slopes

　　2. Explosion proof printer

　　3. Explosion proof large screen display

　　4. Overload explosion-proof alarm system

　　5. 4-20mA current output

　　Features

　　1. Single, double layer structure, overall panel;

　　2. Built in junction box, beautiful and elegant;

　　3. Adopting U-shaped cold formed steel assembly welding, the scale body has high strength;

　　4. Plate, pattern precision welding;

　　5. The structure is tight and durable, and the surface is treated with sandblasting and baking paint, with strong corrosion resistance.

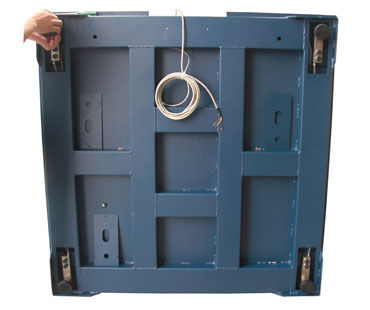

　　Weighing platform

　　1. All steel weighing platform or installing adjustment feet at the four corners of the PD type outer frame

　　2. Built in junction box, beautiful and elegant

　　3. Adopting specialized steel assembly welding, the scale body has high strength and sufficient precision

　　4. Flat or patterned steel plate countertop

　　5. The surface is treated with sandblasting and baking paint, with strong corrosion resistance

　　6. It can be made of all stainless steel material with wire drawing treatment.

　　Model Selection

　　1. DCS-XC-EX 0808

　　Maximum weighing 1t-3t, minimum indexing 200-500g, table size 800 * 800

　　2. DCS-XC-EX 0810

　　Maximum weighing 1t-3t, minimum indexing 200-500g, table size 800 * 1000

　　3. DCS-XC-EX 1010

　　Maximum weighing 1t-3t, minimum indexing 200-500g, table size 1000 * 1000

　　4. DCS-XC-EX 1012

　　Maximum weighing 1t-3t, minimum indexing 200-500g, table size 1000 * 1200

　　5. DCS-XC-EX 1212

　　Maximum weighing 1t-3t, minimum indexing 200-500g, table size 1200 * 1200

　　6. DCS-XC-EX 1215

　　Maximum weighing 1t-3t, minimum indexing 200-500g, table size 1200 * 1500

　　7. DCS-XC-EX 1515

　　Maximum weighing 1t-3t, minimum indexing 200-500g, table size 1500 * 1500
