Product Introduction

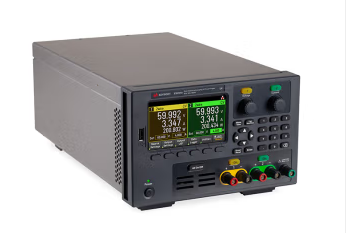

　　The Keysight E36200 series automatic range desktop power supply can power devices that typically require high output power and rated power.

　　The single output E36200 series automatic range desktop power supply can provide power for devices that require up to 200 W of power; The dual output power supply can provide two independent 200 W outputs and can be combined into a single 400 W output.

　　By using three technologies: automatic range, automatic series connection, and automatic parallel connection, larger currents can be generated at higher voltages. All four models are equipped with automatic range output, which can provide greater current at various voltages. Automatic series connection and automatic parallel connection can combine the outputs of the dual output model inside the power supply, creating a single 400 W output.

　　Features

　　1. Use an automatic range power supply to generate greater current at various voltages.

　　2. By automatically paralleling the output, a larger current of up to 40 A is obtained.

　　3. By automatic series combination output, higher voltages up to 120 V are obtained.

　　4. Control the impulse current through variable conversion rate.

　　5. Use overvoltage protection, overcurrent protection, and over temperature protection measures to ensure device safety.

　　6. The low ripple and low noise output of<350 µ Vrms brings you more benefits.

　　7. Improve load regulation capability through four wire induction.

　　8. The built-in data recorder allows you to measure the changes in power over time.

　　9. Simplify the connection of USB, LAN (LXI Core), and optional GPIB interfaces.

　　Product Selection
