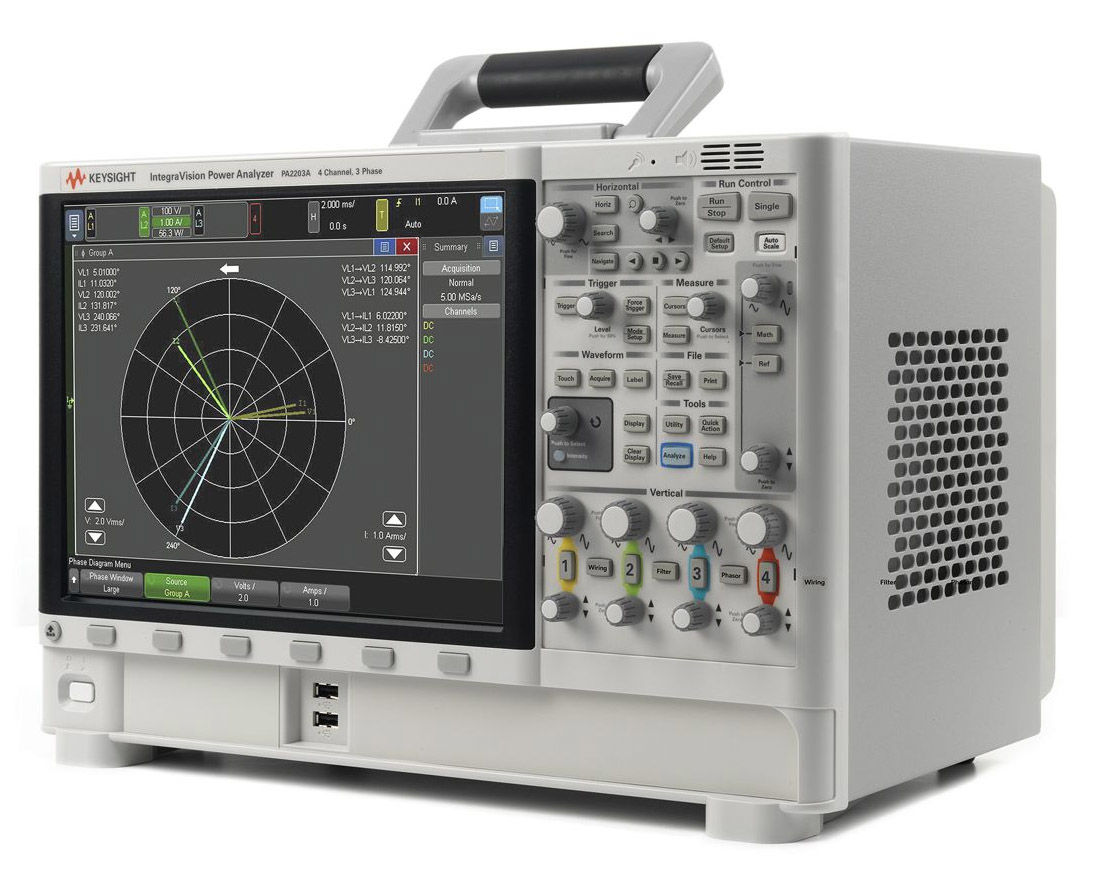

Introduction：The PA2203A IntegraVision power analyzer can measure power parameters and display real-time voltage, current, and power traces of four channels.
Features
1. Achieve higher accuracy of power analyzers.
2. By flexibly providing a wide range and highly isolated input, it meets the needs of various testing scenarios.
3. Display transient, impulse current, and state changes through a high-speed digitizer.
4. Analyze voltage, current, and power in the time or frequency domain.
4. 12.1 inch touch screen.
Specification parameters
3 Phase Analysis: Yes
Bandwidth: 2.5 MHz
Basic accuracy (50/60 Hz): 0.05%
Optimal power accuracy: 0.1%
Number of channels: 4
To high direct current input: 2 A/6 A Peak
Effective value of maximum voltage: 1000 V/2000 V Peak
Phase exchange: 3
Sampling rate: 5 M Sa/s
